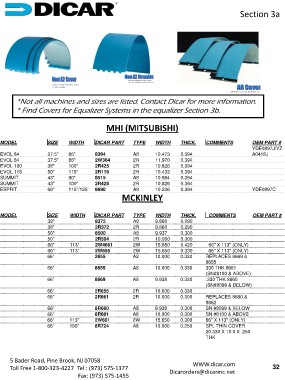

Page 30 - 2026 Dicar Product Catalog

Section 3a

*Not all machines and sizes are listed. Contact Dicar for more information.
* Find Covers for Equalizer Systems in the equalizer Section 3b.

MHI (MITSUBISHI)

MODEL SIZE WIDTH DICAR PART TYPE WIDTH THICK. COMMENTS OEM PART #
YDE0897J/YZ
EVOL 84 37.5" 86" 8364 A8 10.473 0.394 A0418J
EVOL 84 37.5" 86" 2W364 2R 11.970 0.394
EVOL 100 38" 100" 2R425 2R 10.826 0.394 YDE0897C
EVOL 115 50” 115” 2R115 2R 10.433 0.394
SUMMIT 43" 90" 8515 A8 10.984 0.394
SUMMIT 43" 100" 2R425 2R 10.826 0.394
ESPRIT 66" 115"/125" 8690 A8 10.236 0.394

MCKINLEY

MODEL SIZE WIDTH DICAR PART TYPE WIDTH THICK. COMMENTS OEM PART #
38" 113" 8372 A8 9.860 0.290
38" 113" 2R372 2R 9.860 0.290 66'' X 113'' (ONLY)
50" 8500 A8 9.937 0.300 66'' X 113'' (ONLY)
50" 113" 2R504 2R 10.000 0.300 REPLACES 8669 &
66" 190" 2W4661 2W 15.650 0.420 8655
66" 2W655 2W 15.650 0.330 330 THK 8661
66" 2655 A2 10.000 0.330 (SN#8100 & ABOVE)
.330 THK 8660
66" 8655 A8 10.000 0.330 (SN#8099 & BELOW)

66" 8669 A8 9.938 0.330 REPLACES 8660 &
8662
66" 2R655 2R 10.000 0.330 SN #8099 & BELOW
66" 2R661 2R 10.000 0.300 SN #8100 & ABOVE
66" X 113" (ONLY)
66" 8R660 A8 9.938 0.300 SPL THIN COVER
66" 8R661 A8 10.000 0.300 20.330 X 10.0 X .250
66" 2W661 2W 15.650 0.300 THK
66" 8R724 A8 10.000 0.250
