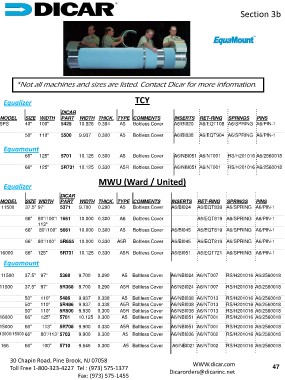

Page 47 - Dicar Product Catalog - 2022
P. 47

Section 3b

       *Not all machines and sizes are listed. Contact Dicar for more information.

Equalizer                                            TCY

MODEL                         DICAR                              INSERTS RET-RING SPRINGS PINS
5PS    SIZE WIDTH PART WIDTH THICK. TYPE COMMENTS                A6/BI020 A6/EQT108 A6/SPRING A6/PIN-1
       40" 100" 5425 10.826 0.394 A5 Boltless Cover

       50" 110" 5500 9.937 0.300 A5 Boltless Cover A6/BI038 A6/EQT904 A6/SPRING A6/PIN-1

Equamount              5701 10.125 0.300 A5 Boltless Cover A6/NBI051 A6/NT001 RS/H201016 A6/2560018

             66" 125"

       66" 125" 5R731 10.125 0.330 A5R Boltless Cover A6/NBI051 A6/NT001 RS/H201016 A6/2560018

 Equalizer                            MWU (Ward / United)

MODEL SIZE WIDTH       DICAR                                     INSERTS RET-RING SPRINGS PINS
11500 37.5" 97"        PART WIDTH THICK. TYPE COMMENTS           A6/BI024 A6/EQT839 A6/SPRING A6/PIN-1
                       5371 9.700 0.290 A5 Boltless Cover

       66" 80"/100"/ 1661     10.000 0.300   A6 Boltless Cover   A6/EQT819 A6/SPRING A6/PIN-1
               113"           10.000 0.300
                                             A5 Boltless Cover A6/BI045 A6/EQT819 A6/SPRING A6/PIN-1
       66" 80”/100” 5661

       66” 80”/100” 5R655 10.000 0.330 A5R Boltless Cover A6/BI045 A6/EQT819 A6/SPRING A6/PIN-1

16000 66" 125"         5R731 10.125 0.330 A5R Boltless Cover A6/BI051 A6/EQT721 A6/SPRING A6/PIN-1

 Equamount

11500 37.5" 97" 5368 9.700 0.290             A5 Boltless Cover A6/NBI024 A6/NT007 RS/H201016 A6/2560018

11500  37.5" 97"       5R368 9.700 0.290     A5R Boltless Cover A6/NBI024 A6/NT007 RS/H201016 A6/2560018

16000  50”       110”  5486   9.937   0.338   A5 Boltless Cover  A6/NBI038 A6/NT013  RS/H201016 A6/2560018
       50”       110”  5R486  9.937   0.338  A5R Boltless Cover  A6/NBI038 A6/NT013  RS/H201016 A6/2560018
       50”       110”  5R500  9.930   0.300  A5R Boltless Cover  A6/NBI038 A6/NT013  RS/H201016 A6/2560018
       66"       125"  5701   10.125  0.300   A5 Boltless Cover  A6/NBI051 A6/NT001  RS/H201016 A6/2560018

15000  66"       113” 5R708 9.900 0.330      A5R Boltless Cover  A6/NBI051 A6/NT001  RS/H201016 A6/2560018
                 80"/113" 5703 9.900 0.300    A5 Boltless Cover  A6/NBI036 A6/NT002  RS/H201016 A6/2560018
13000/15000 66"

166 66" 100” 5710 9.646 0.300                A5 Boltless Cover A6/NBI021 A6/NT002 RS/H201016 A6/2560018
