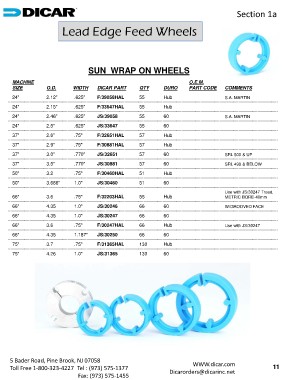

Page 11 - Dicar Product Catalog - 2022
P. 11
Section 1a
Lead Edge Feed Wheels
SUN WRAP ON WHEELS
MACHINE O.D. WIDTH DICAR PART QTY DURO O.E.M. COMMENTS
SIZE 2.12” .625" F/39058HAL 55 Hub PART CODE S.A. MARTIN
24" 2.15” .625" F/33647HAL 55 Hub S.A. MARTIN
24" 2.46” .625" JS/39058 55 60
24" 2.5” .625" JS/33647 55 60 SRL 500 & UP
24" 2.6” .75" F/32651HAL 57 Hub SRL 499 & BELOW
37" 2.9” .75" F/30881HAL 57 Hub
37" 3.0” .770" JS/32651 57 60 Use with JS/30247 Tread.
37" 3.5” .770" JS/30881 57 60 METRIC BORE-40mm
37" 3.2 .75" F/30460HAL 51 Hub W/GROOVED FACE
50" 3.686” 1.0" JS/30460 51 60 Use with JS/30247
50"
3.6 .75" F/32203HAL 55 Hub
66" 4.35 1.0" JS/30246 66 60
66" 4.35 1.0" JS/30247 66 60
66" 3.6 .75" F/30247HAL 66 Hub
66" 4.35 1.187" JS/30250 66 60
66" 3.7 .75" F/31365HAL 130 Hub
75" 4.26 1.0" JS/31365 130 60
75"
