Page 17 - Dicar Product Catalog - 2022
P. 17
Section 2c

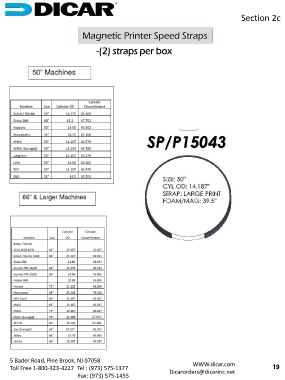

Magnetic Printer Speed Straps
*Do not cut speed strap or magnet overhang.
* Depending on diameter of the cylinder the strap may not cover the
full circumference. In such cases it may be necessary to use two
speed straps to cover the circumference. This also eliminates need to
register the strap location. Straps should be used side by side in this
case.
*Be sure the magnet is flush to the cylinder for best holding force.
*Do not overlap the magnet. If this happens, the part is too large for
the cylinder and a smaller size should be used.
